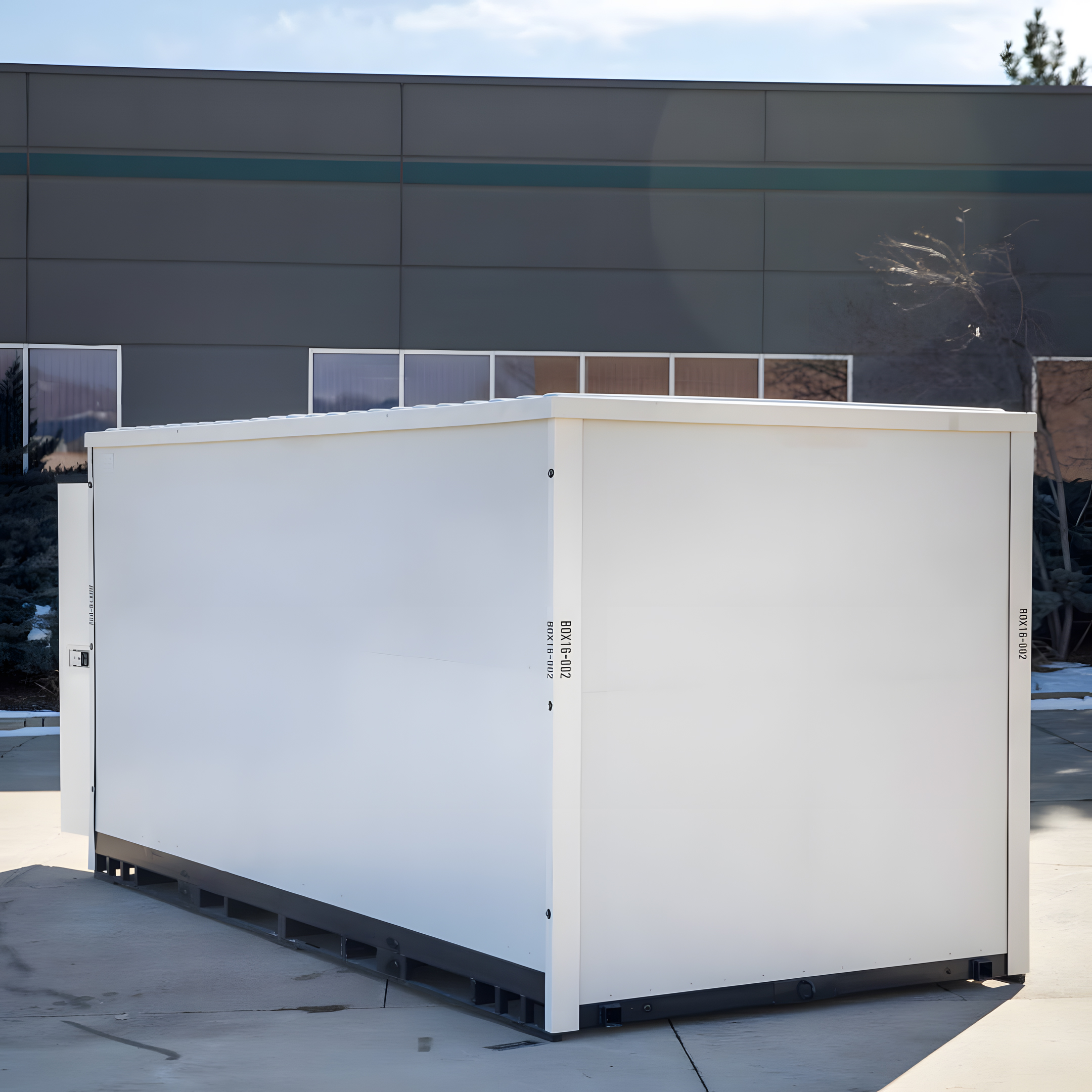

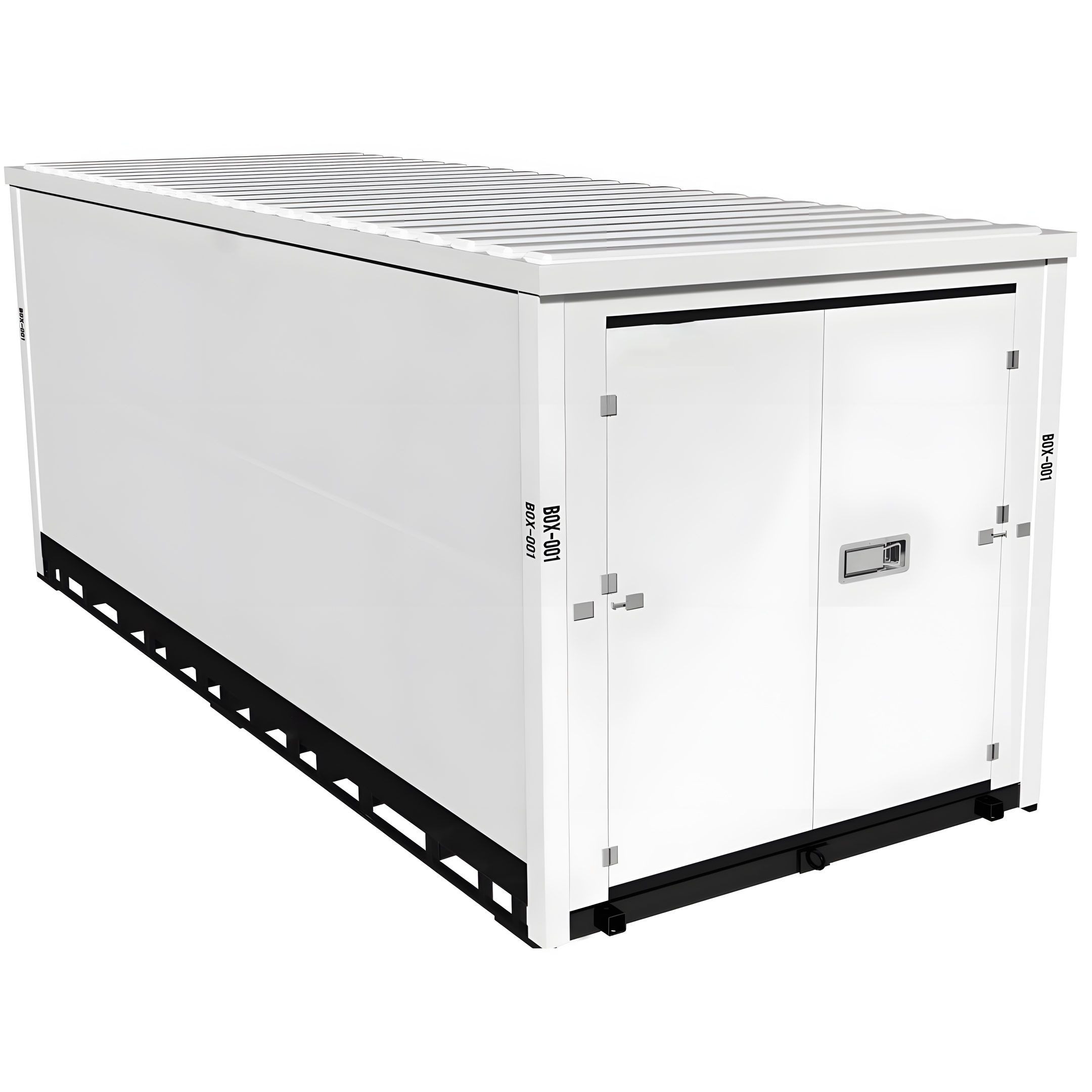

20ft Homes Prefab Steel Expandable Storage Container Houses With Wheels Luxury Containers House Container
MATERIALS LIST Assembly tray Framework All steels must be galvanized, bottom main steel frame thickness 3.0mm, beams 2.0mm, wall main frames 1.5mm, sub frames 1.2mm Bottom […]
$2,455.00
|
MATERIALS LIST
|
||||
|
Assembly tray
|
||||
|
Framework
|
All steels must be galvanized, bottom main steel frame thickness 3.0mm, beams 2.0mm, wall main frames 1.5mm, sub frames 1.2mm
|
|||
|
Bottom beam and purlin
|
All use 50*100mm big square tube, the square tubes are on the same horizontal line to increase the load-bearing strength.
|
|||
|
Floor(Optional)
|
18mm strenthened and doulbe surfaces cladding plywood board
1.5mm diamond pattern galvanized steel metal plate
|
|||
|
Mule Ports(Optional)
|
Galvanized square tube, Powder coated surfaces/Painting
|
|||
|
Forklift hole
|
250mm W x 60mm H, centro space 970mm or 1220mm, thickness 3.5 mm
|
|||
|
Track rings or hook
|
Rings or hook at front &rear of bottom (or D ring)
|
|||
|
Bottom rubber pad
|
Rubber pad
|
|||
|
Roof Protect System
|
||||
|
Roof Panel
|
1.2mm ISO shipping container shaps roof plate, fully welded and sealed 360° with 2 reinforcing ribs
|
|||
|
Roof Frame
|
5mm thickness steel plate
|
|||
|
Hang up rings
|
Galvanized, add rubber pad
|
|||
|
Wall Protect System
|
||||
|
Wall Panel(Optional)
|
0.8 mm flat powder coated galvanized sheet
1.0 mm flat powder coated galvanized sheet
|
|||
|
Partition Wall
|
0.8 mm corrugated powder coated galvanized sheet
|
|||
|
Side steel frame
|
Galvanized square tube, Powder coated surfaces/Painting
|
|||
|
Corner guard plate
|
Iron plate bending part,Powder coated surfaces/Painting
|
|||
|
Air vent
|
1 or 2 waterproof vent at top right of length wall
With rain cover and insect net
|
|||
|
Wall and top connector
|
Iron plate bending part
|
|||
|
Door System
|
||||
|
Door type(Optional)
|
Swing door or roller door
|
|||
|
Door opening
|
Double door opening: 1727*1828mm, single door opening: 950*1828mm
|
|||
|
Door frame waterproof sealing ring
|
Inlaid rubber strip (windproof, waterproof and insect proof)
|
|||
|
Buried lock body
|
2 padlock holes & emergency cable
|
|||
|
Door hinge
|
Galvanized or 304 Stainless steel material
|
|||
|
Windhop
|
Galvanized or 304 Stainless steel material
|
|||
Key attributes
Design Style: Modern
Material: Sandwich Panel, Steel
Shape: Flat Pack
Feature: Breathable
Product Type: Folding Container
Warranty: 3 years
Application: Storage & Closet
Use: Warehouse
Thickness: Standard
Model Number: EL-PSC250804
Type: Portable Storage Container
Product name: Mobile Foldable Prefab Steel Portable Storage Container
Main frame: Galvanized square tube
Purlin: Iron plate bending part
Forklift hole: Iron plate bending part
Mule Ports: Galvanized square tube
Door plank: Double open swing door*2 1800(W)x1900(H)mm
Surface Treatment: Galvanized, Painted, Or Other
Certification: ISO 9001/ CE
Feature: Simple Installation, Short Construction Period, Strong And Durable
Installation: Installation Drawings, Installation Videos, Or Engineer Guidance
Packaging and delivery
Selling Units: Single item
Single package size: 20X20X5 cm
Single gross weight: 2.000 kg
